Fiber Optic Couplers & Splitters (Single & Multi Mode, 1 X N, N X M, Large Core N X M

· Fiber Optic Couplers & Splitters - Single Mode & Multi Mode 1x2, 2x2

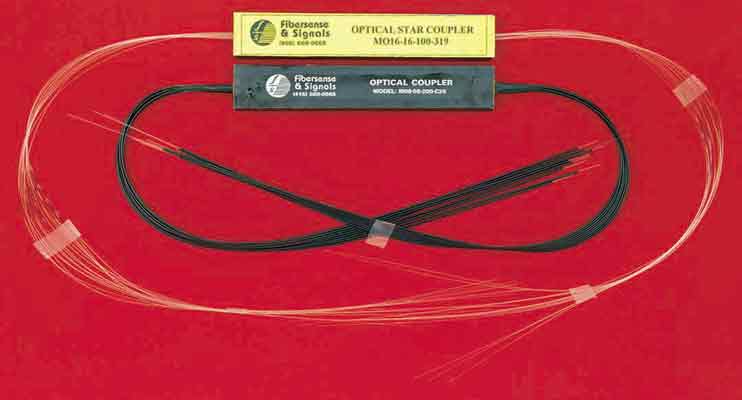

· Fiber Optic Star Couplers - Single Mode & Multi Mode (NxM) N and M up to 16 respectively

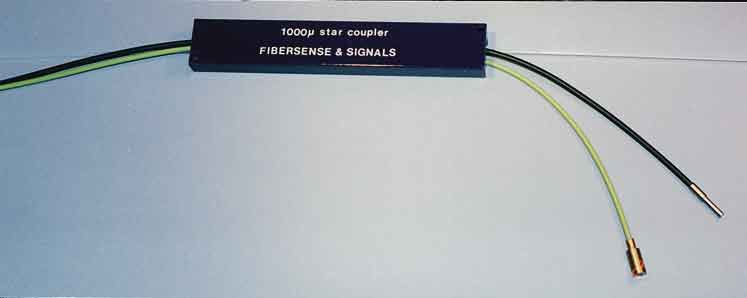

· Couplers & Stars made from Large Core-Diameter Fibers - 100, 200, 300, 400, 500, 600, 800
  & 1,000 micron core - 1x2, 2x2, 1x3, 1x4, 4x4, 5x5, 16x16


FIBER OPTIC COUPLERS, SPLITTERS AND STAR COUPLERS
AN UNPRECEDENTED AND COMPREHENSIVE RANGE OF MODELS FROM
SINGLEMODE, MULTIMODE AND LARGE CORE-DIAMETER FIBERS TO COVER
ALL OPTICAL-SIGNAL COUPLING AND SPLITTING REQUIREMENTS

FIBERSENSE’S fiber optic couplers, splitters and star couplers are based on the
company's own technologies and propriety designs, and are a result of our state-of-the-art
 R & D activity.

FEATURES

• Innovative designs
• Comprehensive range of port configurations (1xN or NxM) or splitting ratios (1% to 99%)
• Minimum Excess Loss for any given fiber type or port configuration
• Excellent output ports uniformity or accurate coupling/splitting ratios as required
• Low back reflection
• Wide temperature tolerance range
• Choice of packagings, including ruggedized and miniaturized options
• Extensive termination options
• Individual quality control and testing
• Specialty fibers available


Fibersense's Couplers, Splitters and Star Couplers are available in all fiber types including:

• Multimode - 50/125µ, 62.5/125µ, 100/140µ fibers & Singlemode
• Large core-diameter fibers - 1000µ, 800µ, 600µ, 500µ, 400µ, 300µ, 200µ, 100µ core
• All silica; hard clad silica; plastic clad fibers
• UV enhanced multimode
• Fibers of any Numerical Aperture
